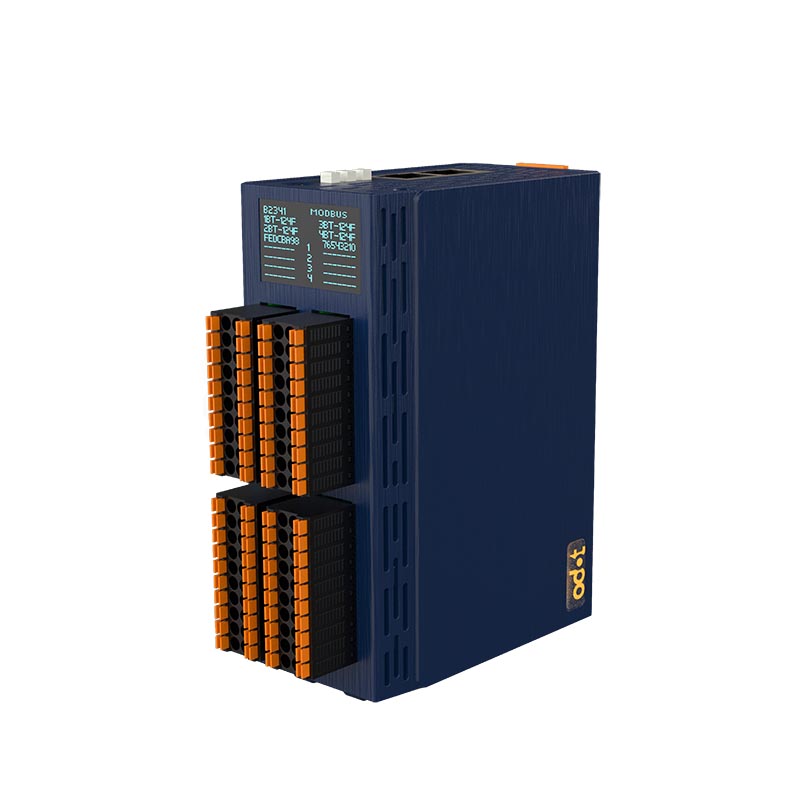

B2341 Codesys PLC Modbus TCP Programable Controller
About CODESYS Version
⦁ Please use the CODESYS version V3.5.19.70
⦁ If you need to use CODESYS version SP20 or higher, please download the Modbus driver from the official website and then follow our tutorial video instructions.
CODESYS Software Download Link: https://store.codesys.com/en/codesys.html
Product Overview
The B2341 programming environment is Codesys, a programmable controller that
follows the IEC61131-3 international standard, and supports five programming
languages: ladder diagram (LD), instruction list (IL), structured text (ST), function
block diagram (CFC), and sequential function diagram (SFC).
The maximum number of expansion modules is 4, the user program storage supports 1 Mbytes,
the power-down protection zone is 4 Kbytes, and Modbus TCP client and server are supported.
It has rich instructions, reliable functions, good adaptability, compact structure, easy
to expand, cost-effective, strong versatility, programming, monitoring, debugging, and
on-site operation are very convenient, and the Ethernet interface on the CPU supports
Modbus TCP client function, and supports access to the data of the third-party
Modbus TCP server.
Supports Modbus TCP server function and supports third-party Modbus TCP clients to access data.
Supported I/O expansion modules include:
A. Digital input module
B. Digital output module
C. Analog input module
D. Analog output module
E. Special function module
Technical Parameters
| General Parameters | |
| System Power | Supply: 19.2-28.8VDC (nominal: 24VDC) Protection: power supply anti-reverse polarity protection |
| Power Consumption | 100mA@24VDC |
| Internal BUS Supply Current | Max.2.5A@5.0VDC |
| Isolation | The system power to field power: isolation |
| IO Modules Supported | B32:2 B64:4 |
| Wiring | Max.1.5mm² (AWG 17) |
| Environment Specification | |
| Operating Temperature of Vertical Installation | -20℃~60℃ |
| Operating Temperature of Horizontal Installation | -20℃~50℃ |
| Relative Humidity | 5%~95%RH, no condensation |
| Storage Temperature | -40℃~85℃ |
| Storage Humidity | 5%~95%RH, no condensation |
| Ingress Protection Rating | IP20 |
| EMC specifications | Comply with IEC61131-2, IEC61000-4 |
| Programming Specifications | |
| Programming Software | Codesys V3.5.19.70 |
| Programming Language | IEC61131-3(LD, IL, ST, CFC, SFC) |
| Maximum Task Status | 5 |
| Program Memory | 1M Bytes |
| Data Storage | 1M Bytes |
| Power-down Protection Area | 3K Bytes |
| Maximum Expansion Module Input | 1K Bytes |
| Maximum Expansion Module Output | 1K Bytes |
| Maximum Number of Tasks | 5 |
| Bitwise Operations Cycle | 0.21us |
| Word Operation Cycle | 0.21us |
| Double Word Operation Cycle | 0.64us |
| Minimum Program Run Cycle | 1ms |
| RTC | Not supported |
| Communication Parameters | |
| Communication Interface | 2*RJ45 |
| Network Port Parameters | 10/100Mbpa self-adaptive, full-duplex |
| Modbus TCP Client | Supports up to 5 Modbus TCP server connections |
| Modbus TCP Server | Supports up to 5 Modbus TCP client connections |
