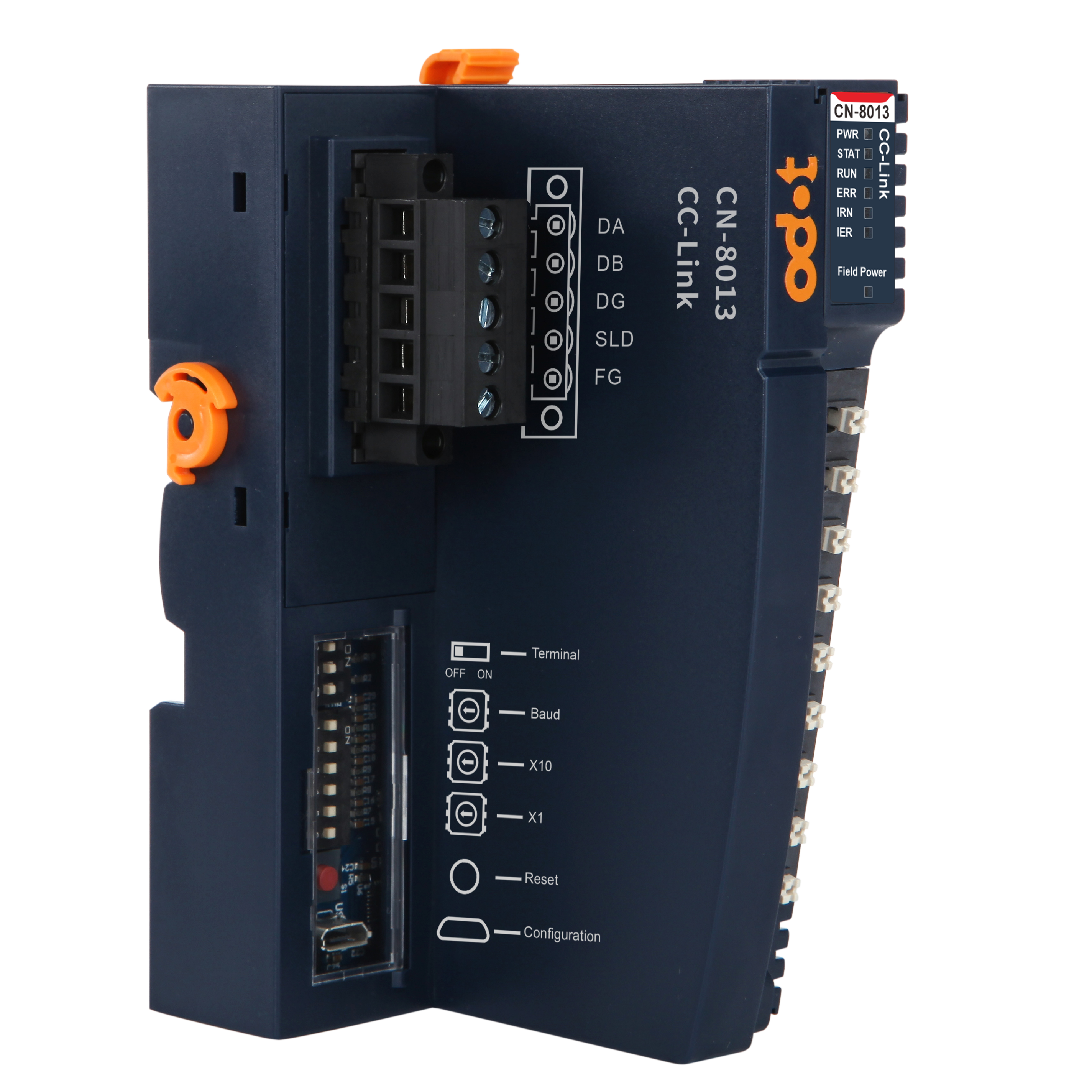

CN-8013 Modular Control CC-Link Bus Coupler IO Network Adapter
CN-8013 CC-Link bus adapter supports standard CC-Link Ver.2 communication and it could monitor the communication status of IO modules in real time.
Adapter Hardware Parameter |
|
|
System Power |
Nominal:24Vdc, Range: 19.2-28.8VdcReverse Protection: YES |
|
Power Consumption |
110mA@24Vdc |
|
Internal Bus Supply Current |
Max：2.5A@5Vdc |
|
Isolation |
System Power to Field Power Isolation |
|
Power Supply
|
Nominal:24Vdc, Range: 19.2-28.8Vdc |
|
Field Power Current
|
Max. DC 8A |
|
IO Modules Supported
|
32pcs |
|
Wiring
|
Max.1.0mm² (AWG 17) |
|
Mounting Type
|
35mm DIN-Rail |
|
Size
|
115*51.5*75mm |
|
Weight
|
130g |
|
Environment Specification
|
|
|
Operation Temperature
|
-35~70℃ |
|
Operation Humidity
|
5%-95% ( No Condensation) |
|
Ingress Protection Rating
|
IP20 |
|
CC-Link Parameter
|
|
|
Protocol
|
CC-Link Ver.2 |
|
Station Type
|
Remote device station |
|
Number of Logical Stations Occupied
|
1, 2, 3, 4 |
|
Extended Loop Setup
|
1 time, 2 times, 4 times, 8 times |
|
I/O Data Capacity
|
RX/RY capacity（bit）max. 896RWr/RWw capacity（word）max. 128 |
|
Baud Rate
|
156K/625K/2.5M/5M/10Mbps |
|
Node Station (Station No.)
|
1~64(DIP switch configuration)，when DIP switch value is not 1~64, and the mandatory station number is 1. |
|
Interface
|
5 Pin screw terminal |
|
Max. bus length
|
1200m（156kbps） |
|
Terminal resistance
|
120ohm |
