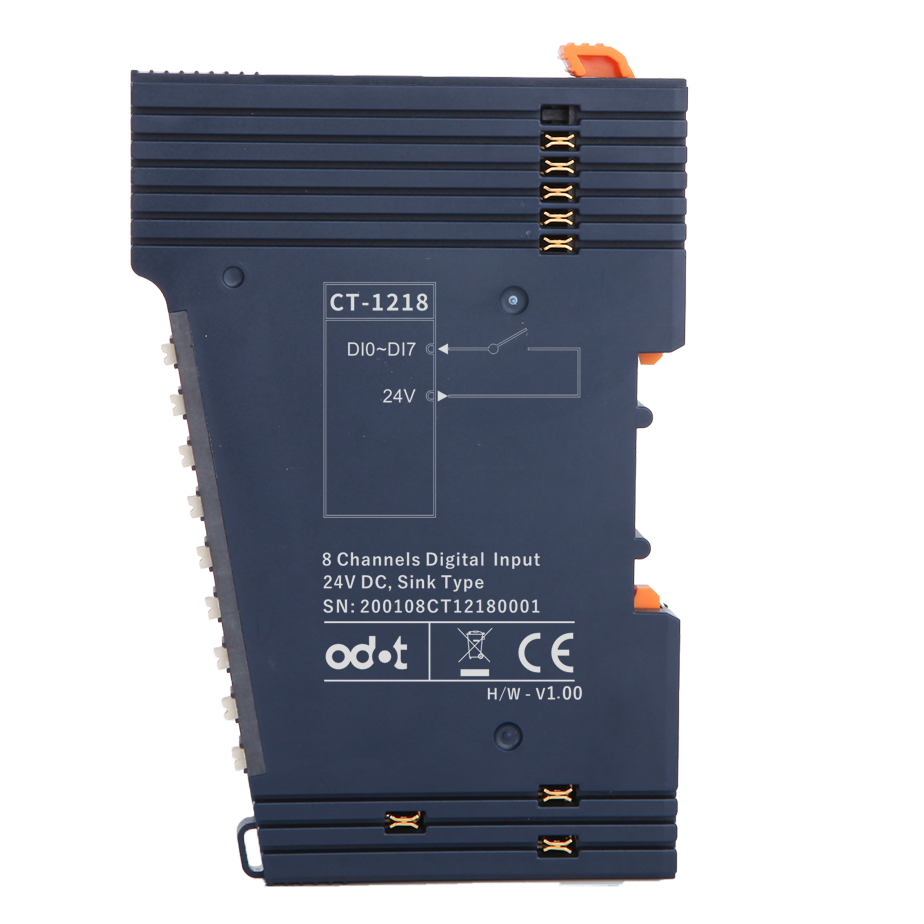

CT-1218 Digital Input 8DI 24VDC PNP
-
Min. Cycle Time8 Channels
-
ExpansionPNP
-
Warranty24VDC
-
ServiceCounter Frequency<200Hz
PRODUCT DESCRIPTION
Key Technical Features
-
Flexible Multi-Channel Input Support
8-channel 24VDC digital input supports sink/PNP sensors, dry contact or active signals, and 2-/3-wire sensors, ensuring broad compatibility with field devices.
-
High Reliability with Isolation and Signal Control
Opto-isolated inputs, configurable signal filtering, and adjustable holding time enhance noise immunity, signal stability, and system reliability.
-
Advanced Counting and Configuration Capability
Each channel features independent 32-bit counters (<200Hz), configurable modes, directions, and transmission order, enabling precise counting and flexible industrial applications.
Technical Specifications
|
General Parameters |
|
|
Power Consumption |
Max.33mA@5.0VDC |
|
Isolation |
I/O to internal bus: opto-couple isolation (3KVrms) |
|
Field Power |
Nominal:24VDC, Range: 19.2～28.8VDC |
|
Wiring |
Max.: AWG 18 |
|
Installation |
35mm DIN-Rail |
|
Size |
115*14*75mm |
|
Weight |
65g |
|
Environment Specification |
|
|
Operating Temperature of |
-35℃~60℃ |
|
Operating Temperature of |
-35℃~70℃ |
|
Relative Humidity |
5~ 95%RH (No Condensation) |
|
Storage Temperature |
-40℃~85℃ |
|
Storage Humidity |
5~ 95%RH (No Condensation) |
|
Manufacturing Test |
-40℃~75℃ |
|
Ingress Protection Rating |
IP20 |
|
Input Parameters |
|
|
Channel Number |
8 channel sink input |
|
LED Indicator |
8 channel input LED indicator |
|
Turn-on voltage |
Min. 10VDC to Max.28VDC |
|
Turn-off Voltage |
Max.5VDC |
|
Turn-on current |
Max. 5mA/channel@28V |
|
Input impedance |
>7.5kΩ |
|
Input delay |
OFF to ON: Max.3ms |
|
Filter time |
Default 10ms |
|
Sample frequency |
500Hz |
|
Counter frequency |
<200Hz |
|
Effective pulse width for counting |
2.5ms |
A:24VDC, high-level active, PNP input, supports counting function up to 200Hz.
A:Suitable for mechanical switch signal acquisition, counting, and high-speed pulse input.
Ideal for industries requiring high-speed, cost-effective distributed I/O:
