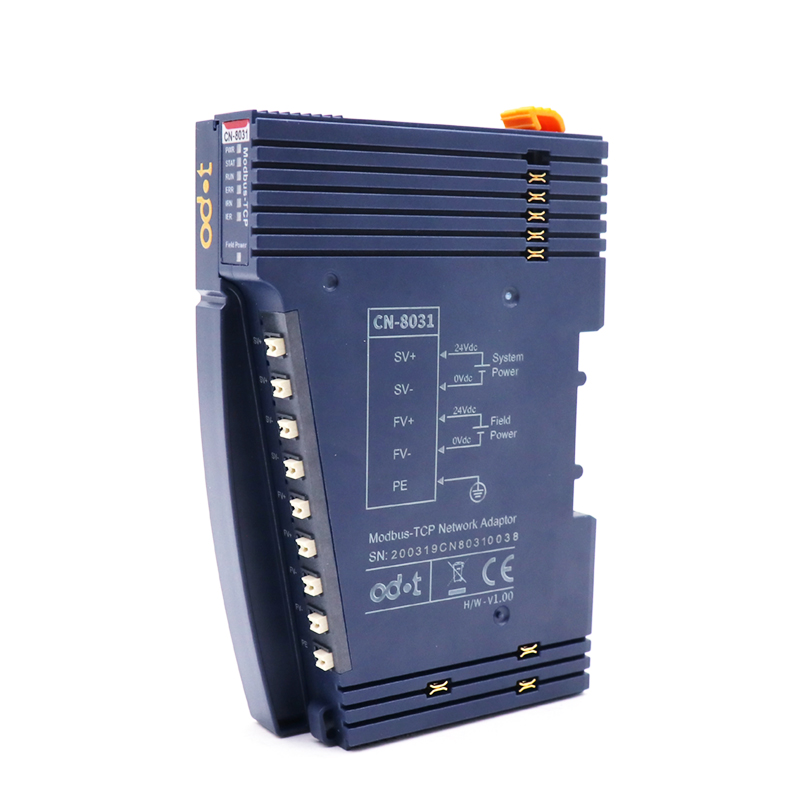

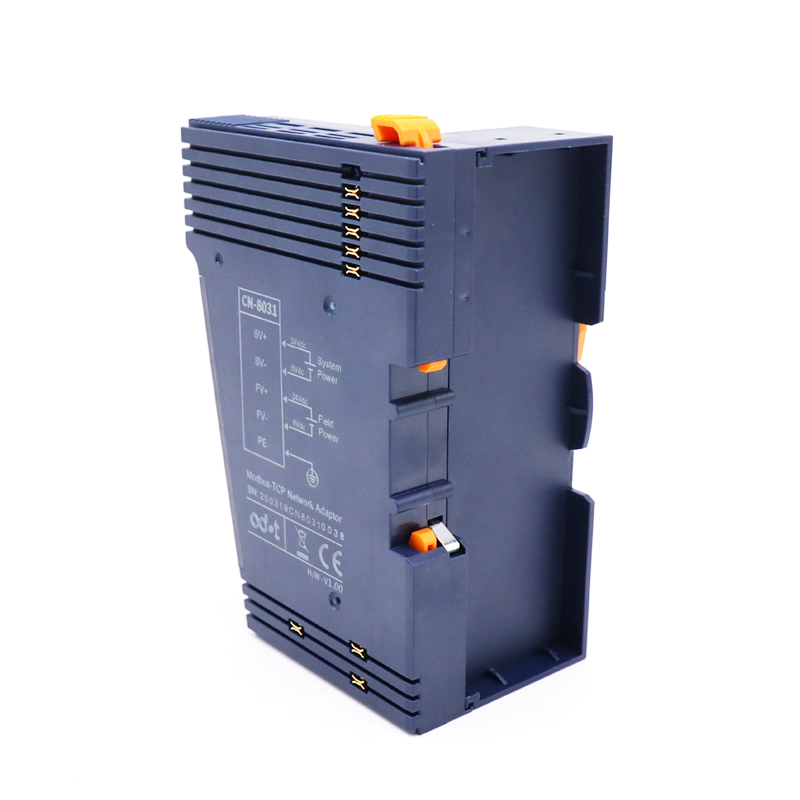

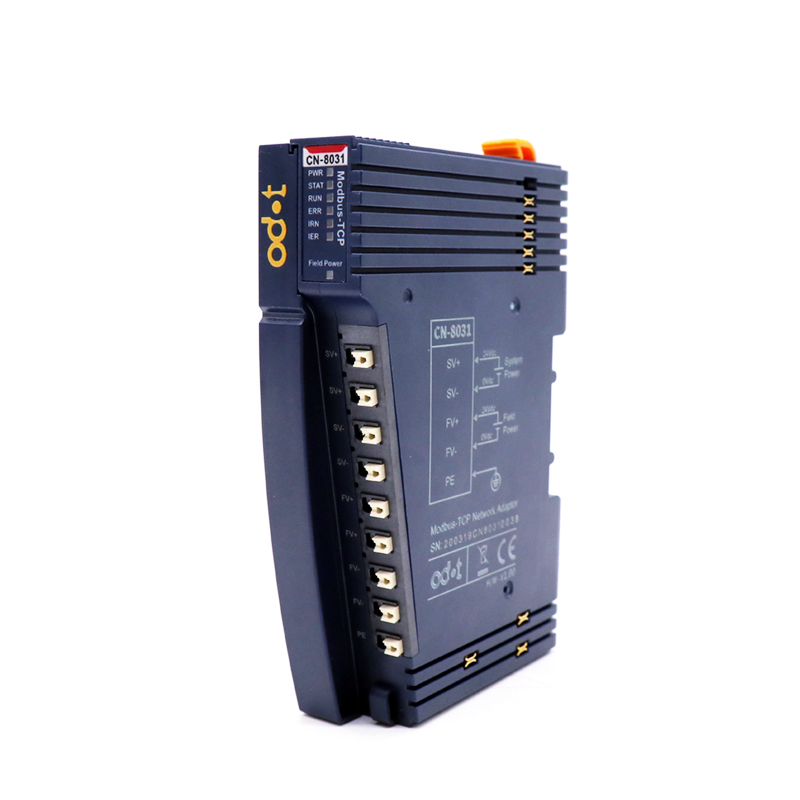

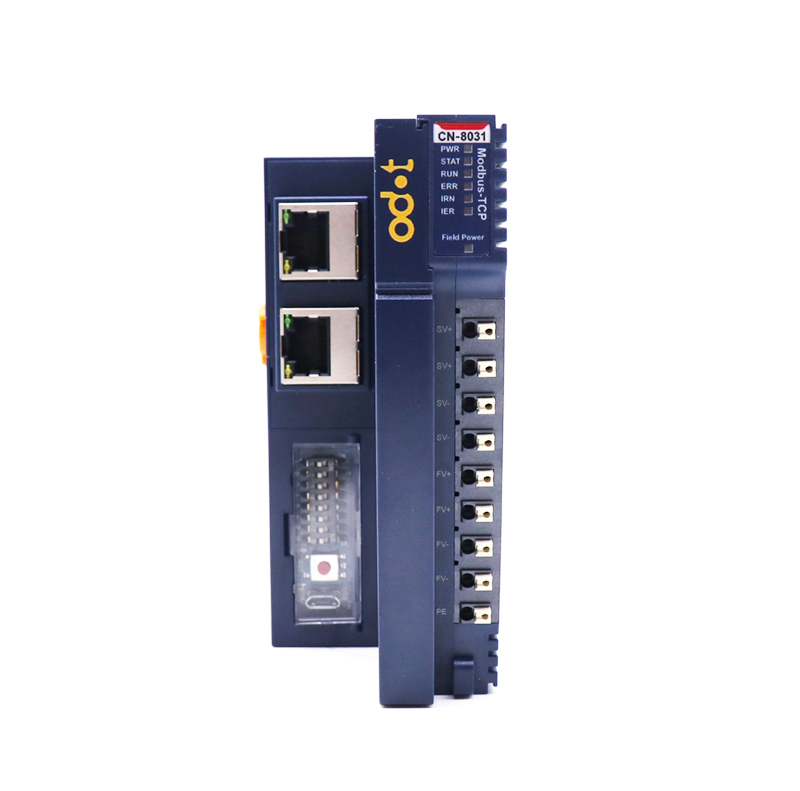

ODOT CN-8031 Modbus TCP IO Module Network Adapter
-
Min. Cycle Time2ms
-
Expansion32 Modules
-
Warranty3 Years
-
ServiceODM&OEM
PRODUCT DESCRIPTION
Key Technical Features
-
Standard Modbus TCP Connectivity
It supports Function Codes 01, 02, 03, 04, 05, 06, 15, and 16, ensuring compatibility with virtually any Modbus TCP Client (Master) on the market.
-
Massive Data Handling
Supports the process data maximum sum of input and output of 8192 bytes
-
Multi-Master Access
The CN-8031 supports up to 5 simultaneous Modbus TCP Client connections. This allows your PLC, HMI, SCADA, and MES system to access real-time data concurrently without conflict.
-
Diagnostics & Safety
It carries with the diagnostic function and it can monitor the communication state of IO module in real time.
Technical Specifications
|
Hardware Specification |
|
|
System Power |
Nominal:24VDC, Range: 19.2～28.8VDC |
|
Power Consumption |
50mA@24VDC |
|
Internal BUS Supply Current |
Max.2.5A@5VDC |
|
Isolation |
System Power to Field Power Isolation |
|
Field Power |
Nominal:24VDC, Range: 19.2～28.8VDC |
|
Field Power Current |
Max. DC 8A |
|
IO Modules Supported |
32 pcs |
|
Wiring |
Max.: AWG 18 |
|
Installation |
35mm DIN-Rail |
|
Size |
115*51.5*75mm |
|
Weight |
130g |
|
Environment Specification |
|
|
Operating Temperature of |
-35℃~60℃ |
|
Operating Temperature of |
-35℃~70℃ |
|
Relative Humidity |
5~ 95%RH (No Condensation) |
|
Storage Temperature |
-40℃~85℃ |
|
Storage Humidity |
5~ 95%RH (No Condensation) |
|
Manufacturing Test Temperature |
-40℃~75℃ |
|
Ingress Protection Rating |
IP20 |
|
Communication Interface Specification |
|
|
Protocol |
Modbus-TCP |
|
Process Data Area |
Sum of input and output:8192 Byte |
|
Diagnostic Function |
YES |
|
Number of TCP |
5 Clients |
|
TCP Keepalive |
YES |
|
Modbus Watchdog |
YES (Default: Enable, 30 Seconds) |
|
Function Code |
01/02/03/04/05/06/15/16/23 |
|
Network Interface |
2*RJ45 |
|
Speed |
10/100Mbps, MDI/MIDX, Full-Duplex |
|
Distance |
100m |
|
Default IP Address |
|
|
IP Address |
DIP switch set or set by IO-Config software |
A:Maximum total I/O is 8192 bytes, can connect multiple distributed modules.
A:Dual Ethernet ports, 10/100Mbps, with built-in Modbus-TCP support.
Ideal for industries requiring high-speed, cost-effective distributed I/O:
