ODOT CN-8032-L Profinet IO Module Network Adapter

ODOT CN-8032-L Profinet IO Module Network Adapter

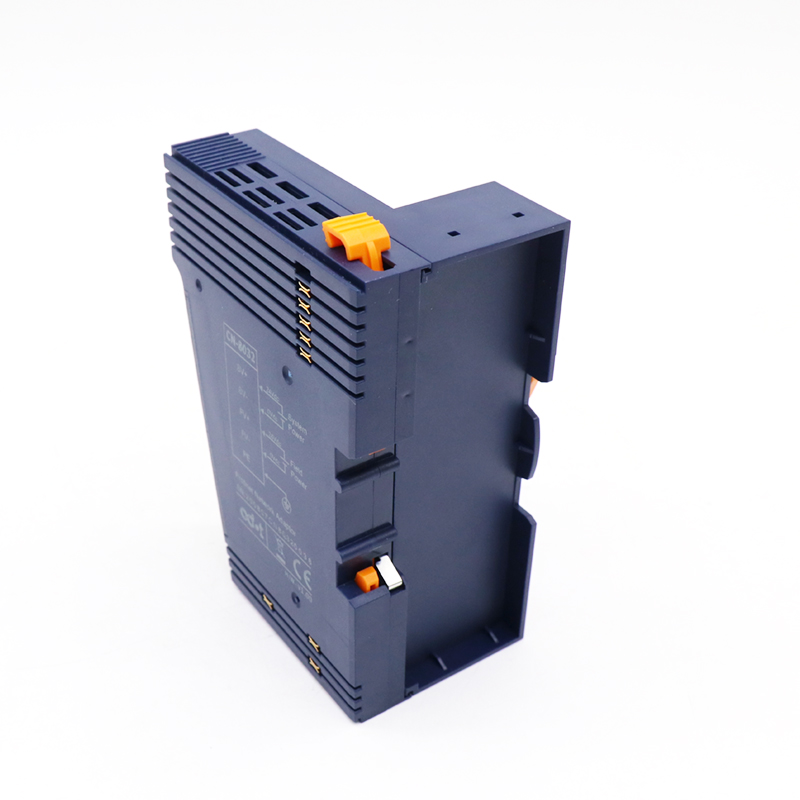

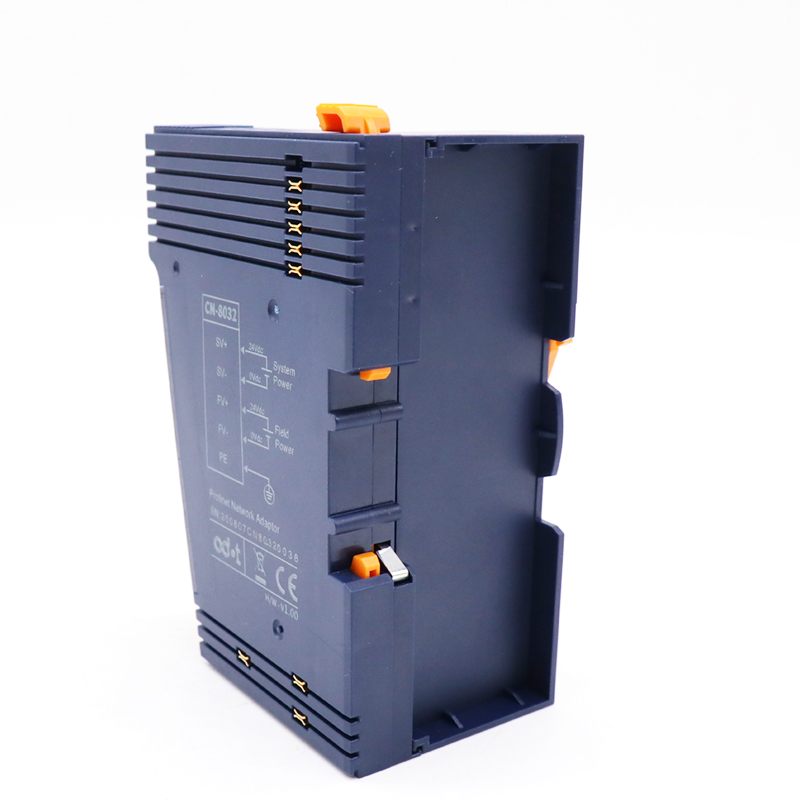

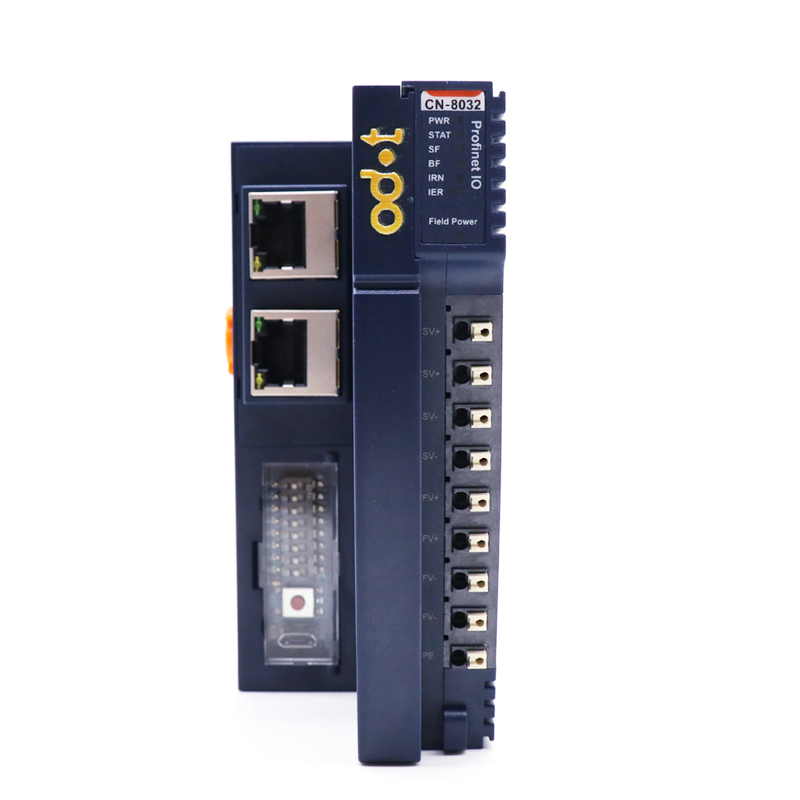

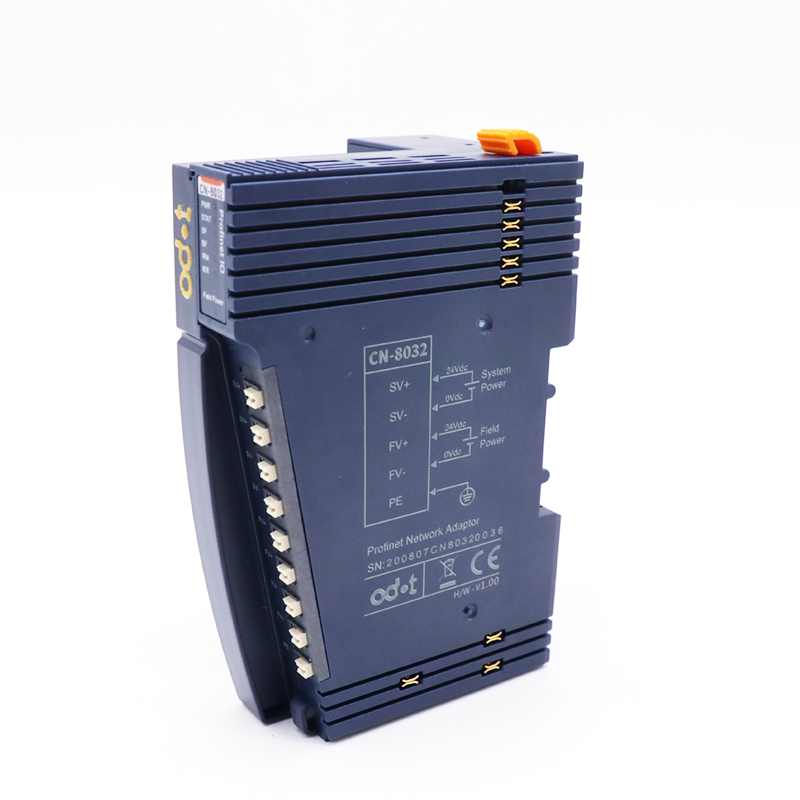

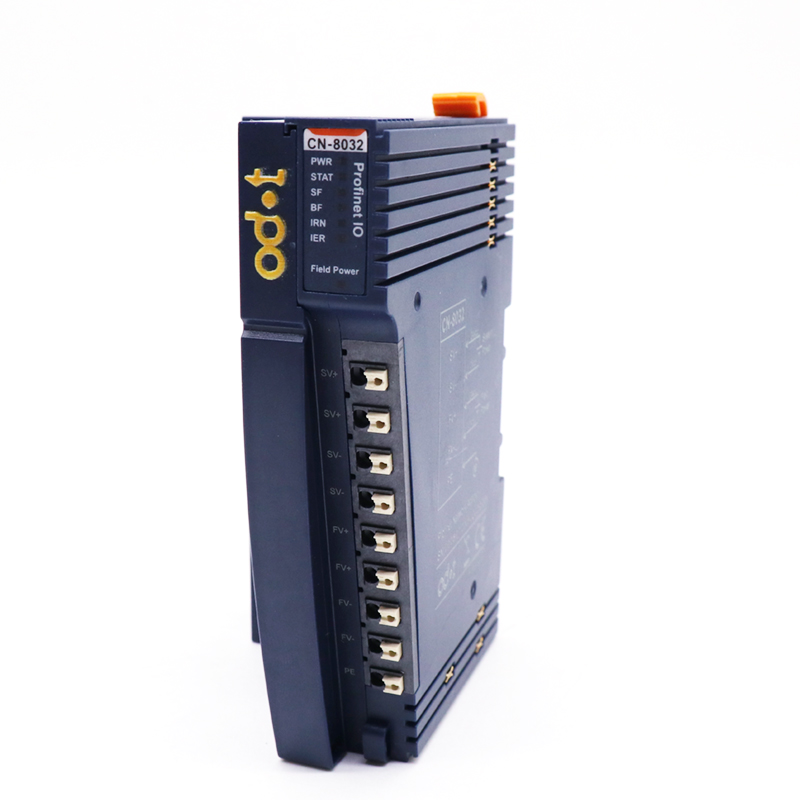

ODOT CN-8032-L Profinet Network Adapter The CN-8032-L Profinet network adapter supports standard Profinet IO Device Communication.

product details

Demo Video

Product Tags

Product Download

Min. Cycle Time

2ms
Expansion

32 Modules
Warranty

3 Years
Service

ODM&OEM

PRODUCT DESCRIPTION

ODOT CN-8032-L PROFINET RT Adapter

PROFINET is an industrial Ethernet standard developed by the PNO (PROFIBUS Network Organization). PROFINET IO describes multiple real-time levels of data exchange between controllers and field devices: RT (software-based real-time communication) and IRT (hardware-based synchronous real-time communication).

ODOT CN-8032-L PROFINET io system

The ODOT CN-8032-L PROFINET Adapter features a compact size, high reliability, and simple configuration. When paired with master stations such as Siemens S7-200 SMART, S7-1200, S7-1500, or PROFINET cards, and combined with ODOT C-series input/output modules, it enables efficient and flexible configuration tailored to different field requirements.

Product Feature:

The ODOT CN-8032-L PROFINET network adapter acts as the bridge between your PROFINET Controller (PLC) and field devices via ODOT’s C-Series I/O modules. Unlike basic models, it supports MRP (Media Redundancy Protocol) for ring network redundancy, ensuring high system reliability even if a cable fails.

Key Technical Features

High-Speed Communication

Supports RT communication (Min. 1ms).
Flexible Topology

Dual RJ45 ports allow for Line, Star, and Ring topologies.
Large Data Handling

Capable of processing 1440 bytes input and 1440 bytes output.
Robust Design

Operating temperature range of -40~85℃ allows installation in harsh outdoor or factory environments.

Technical Specifications

Hardware Specification
System Power	Nominal:24VDC, Range: 19.2～28.8VDC Current: Max.2A@24VDC Protection: Reverse Protection, Overcurrent Protection
Power Consumption	110mA@24VDC
Internal BUS Supply Current	Max:2A@5VDC
Isolation	System Power to Field Power Isolation
Field Power	Nominal: 24VDC, Range: 19.2～28.8VDC
Field Power Current	Max DC 8A
IO Modules Supported	32 pcs
Wiring	Max.: AWG 18 Min.: AWG 24
Installation	35mm DIN-Rail
Size	11551.575mm
Weight	130g
Vibration Resistance	Comply with IEC 61131-2 and EC 60068-2-6
Impact resistance	Comply with IEC 61131-2 and IEC 60068-2-27
EMC Performance	Comply with IEC 61131-2 and IEC 61000-4
Environment Specification
Operating Temperature of Vertical Installation	-35℃~60℃
Operating Temperature of Horizontal Installation	-35℃~70℃
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40℃~85℃
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40℃~75℃
Ingress Protection Rating	IP20
Profinet Parameter
Protocol	Profinet IO Device
I/O Data Size	Input Max 1440 Bytes, Output Max 1440 Bytes
RT	Supported, Min.1ms
IRT	Not supported
MRP	Not supported
MRPD	Not supported
Network Interface	2*RJ45
Speed	10/100Mbps, MDI/MIDX, Full-Duplex
Max bus distance	100m
Profinet Device Name	DIP switch setting or Profinet monitor modifying
Default IP Address	192.168.0.254

PRODUCTS FAQ

Q:Is CN-8032-L suitable for Siemens PROFINET systems?

A:Yes. CN-8032-L is fully compatible with Siemens PROFINET PLC systems and supports standard GSDML configuration.

Q:How many I/O modules can be expanded?

A:The CN-8032-L supports up to 32 ODOT C-series remote I/O modules, allowing flexible configuration for different automation needs.

Industry Applications

Ideal for industries requiring high-speed, cost-effective distributed I/O:

Automotive: Assembly lines and welding robots.

Intralogistics and conveyor systems: Sorting systems and warehousing AGVs.

Packaging: High-speed filling and labeling machines

Why Choose ODOT?

We understand the challenges system integrators and engineers face today. The CN-8032 is not just a hardware component; it is a solution designed to optimize your business efficiency.

Fast & Reliable Delivery

If you are facing: Global supply chain disruptions causing long lead times (6-12 months) for critical automation parts.

Our Solution: We maintain a robust supply chain and ample stock levels. ODOT guarantees rapid delivery (Most products can be shipped within 1-3 working days，typically shipping within 1-2 weeks for standard orders), ensuring your project stays on schedule and machine downtime is minimized.

24/7 Global Technical Support

If you are facing: Lack of timely support during commissioning, leading to project delays.

Our Solution: We provide 24-hour technical support. Our team of dedicated application engineers is available around the clock to assist with GSDML file configuration, PLC integration (Siemens S7-1200/1500, etc.), and troubleshooting, ensuring a smooth setup process regardless of your time zone.

Certifications & Quality Assurance:

ODOT products comply with international industrial standards, including CE,UL, RoHS, CL and CCS certifications, having undergone rigorous quality control to ensure long-term reliable operation in industrial environments.
