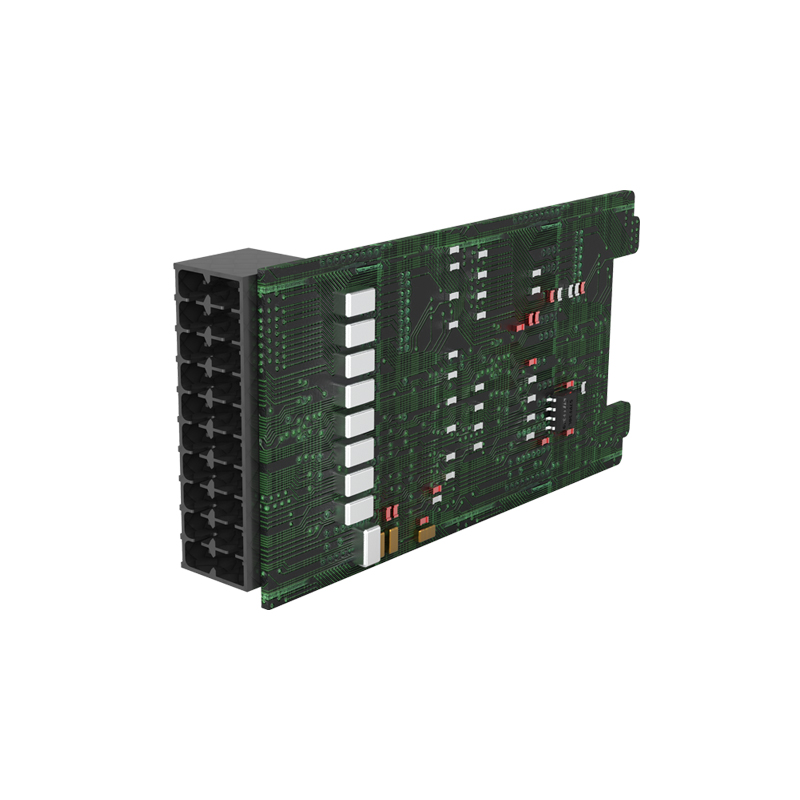

Analog output IO module
-
BT-4234：4-channel analog output /0&4-20mA/15-bit/16-bit/ single ended, Code: P
◆ 0-20mA or 4-20mA, the two output ranges can be set.
◆ the module internal bus and field output adopts magnetic insulation.
◆ single-terminal grounded together output mode.
◆ the module supports the channel open circuit overload warning function to the corresponding channel.
◆ the module supports LCD display of basic module information and channel indicator display parameters.
-
BT-4154：4 channels / Voltage Output 0~5VDC/0~10VDC/±5VDC/±10VDC,15 bits /16 bits, Code: Q
◆ the module supports 4 channels voltage signal output.
◆ output range：0~5VDC/0~10VDC/±5VDC/±10VDC，15bit/16bit resolution.
◆ module output signal is single – ended common – grounded output.
◆ the module supports the channel overcurrent and over temperature protection warning function to the corresponding channel.
◆ the module supports LCD display of basic module information and channel indicator display parameters.
